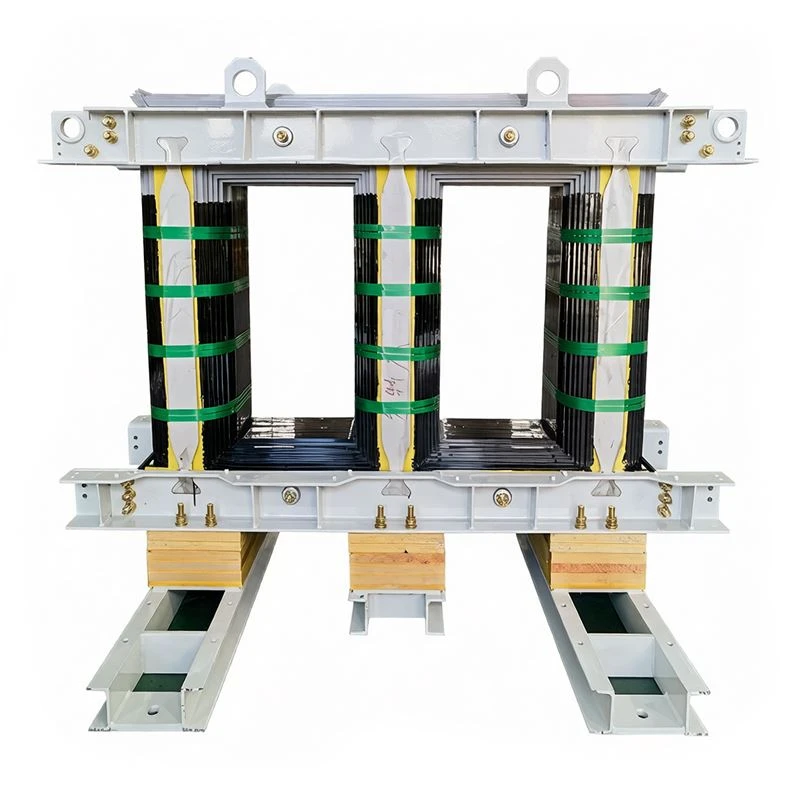

Traction Transformer Core

The traction transformer core is specifically designed for high-speed rail and electrified railway main line power supply. These transformers face frequent overloads and severe load fluctuations. This requires excellent mechanical strength and magnetic stability from the core. We use high-permeability grain-oriented silicon steel coils from Baowu and Ansteel. This material has low losses and high permeability. It maintains stable voltage output even under frequent impulse loads. This reduces energy loss and keeps the system running efficiently.

Our factory has 4 slitting lines and 15 shearing lines. The slitting lines cut wide silicon steel coils into the required widths. The shearing lines then cut the strips into precise sheet lengths. All shearing operations are fully automated. This ensures that every sheet has accurate dimensions and a smooth cut edge. Our quality team pays special attention to burr height at the cut edge. Excessive burrs can cause short circuits between laminations. This increases core loss. We keep burrs well within industry standards. Our traction transformer core is built to last.

Specialized Knowledge in Railway Applications

Our company was founded in 2000. We have 26 years of experience in this field. Our technical team has specific expertise in traction transformer cores. We understand the demand for lightweight and compact designs in high-speed rail. During production, we help you optimize the lamination factor and joint design. This achieves higher flux density within a limited space. The common capacity range is 30kVA to 10000kVA. The voltage rating is 10kV to 35kV. Our traction transformer core meets the unique needs of railway power systems.

Full Traceability for Your Peace of Mind

We have strict rules for product traceability. We record the batch number of the silicon steel coil. We also record the production date, operator names, and test data for every batch of cores. If you have any concerns during use, we can quickly trace back to the production stage. We can find the root cause and resolve it as soon as possible. This complete traceability system gives you confidence in our product. We see ourselves as a stable and reliable link in your supply chain.
