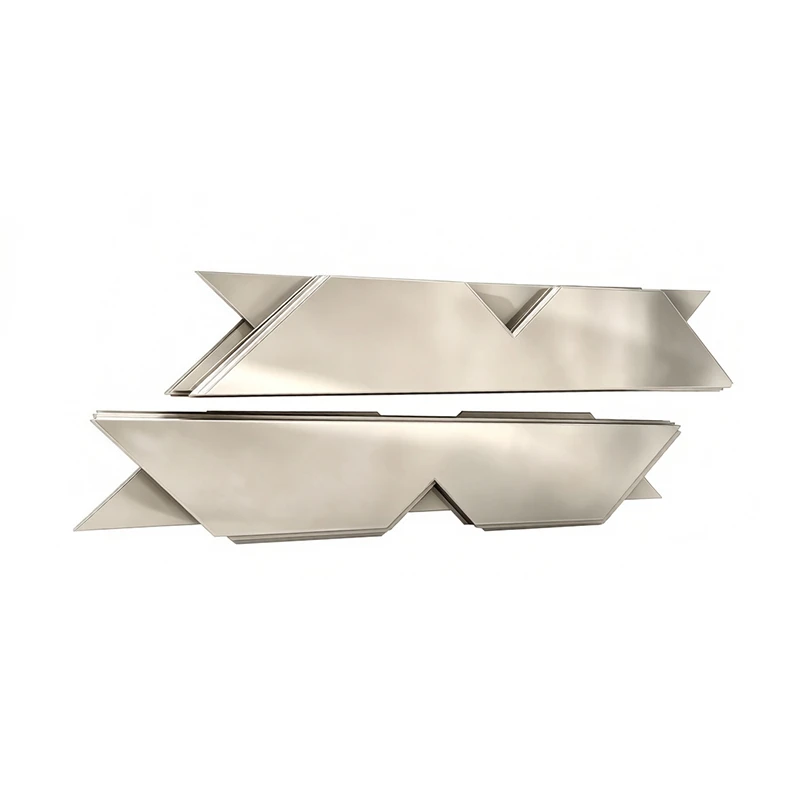

The cold rolled electrical steel sheets are the basic units used in transformer and motor core manufacturing. These sheets are cut from silicon steel coils through a shearing process. They are then used for lamination. We produce all our cold rolled electrical steel sheets from genuine silicon steel coils from Baowu and Ansteel. The thickness options cover a wide range. These include 0.23mm, 0.27mm, 0.30mm, 0.35mm, and 0.50mm. This variety allows us to meet the needs of transformers, generators, and various motors. Our cold rolled electrical steel sheets are ready for your assembly line.
Our shearing process uses automated and intelligent mass production. All 15 shearing lines have CNC systems. These systems automatically handle feeding, cutting, and stacking based on preset parameters. This automated approach effectively eliminates the thickness variations that can occur with manual operations. Every sheet is cut to consistent dimensions within strict tolerance. Accurate dimensions and small burrs are the key features of our sheets. These features help reduce core loss and noise levels. Our cold rolled electrical steel sheets are precision-made.
Custom Shapes for Non-Standard Designs
For transformer cores with voltage ratings from 10kV to 110kV, we can provide sheets in the required specifications. When we receive your drawings, our technical team first optimizes the layout plan. They determine the best cutting scheme to maximize material utilization. The shearing lines then follow the plan for continuous production. Each batch maintains consistent color and surface condition. For special shapes such as stepped or sector-shaped sheets, we use a flatbed laser cutter as a supplement. This handles non-standard design needs. Our cold rolled electrical steel sheets support complex designs.
Batch Inspection and Flexible Packaging
Before shipment, our quality inspectors take sample sheets from each batch for inspection. The checks include sheet length, width, cut angle, burr height, and surface flatness. All inspection data is recorded in the batch file. You can query this data using your order number. We also offer different packaging options. You can choose bundle packing or pallet packing. The outer packaging clearly shows the product specifications, quantity, and production date. This makes it easy for you to check and manage the materials upon receipt. Our cold rolled electrical steel sheets are easy to handle and verify.
Cold Rolled Electrical Steel Specifications
|
Parameter |
Details |
|
Thickness Options |
0.23mm / 0.27mm / 0.30mm / 0.35mm / 0.50mm |
|
Voltage Rating |
10kV - 110kV |
|
Core Process |
Automated intelligent shearing, precise dimensions, small burrs |
|
Core Material |
Genuine Baowu/Ansteel Silicon Steel (Oriented/Non-Oriented Options) |
|
Customization |
Per customer drawings, supports non-standard shapes with laser cutting |
